[10inch] ATOTO F7XE Built in DAB+ Double-DIN & Single-DIN Adaptive Car Stereo QLED Touchscreen, Wireless CarPlay & Wireless Android Auto, Bluetooth, HD LRV, MirrorLink, Quick Charge, USB/SD, F7G110XED

ATOTO F7G110XED: DAB+ Stations One Finger Tap Away!

Product Information

• Product Version: F7 Extreme Edition (XE). Model: F7G110XED; Operating System: Linux; Mounting style: SAH10D (Single DIN Adaptive Head Unit with a 10.1-inch Display, can also be mounted as Double DIN)

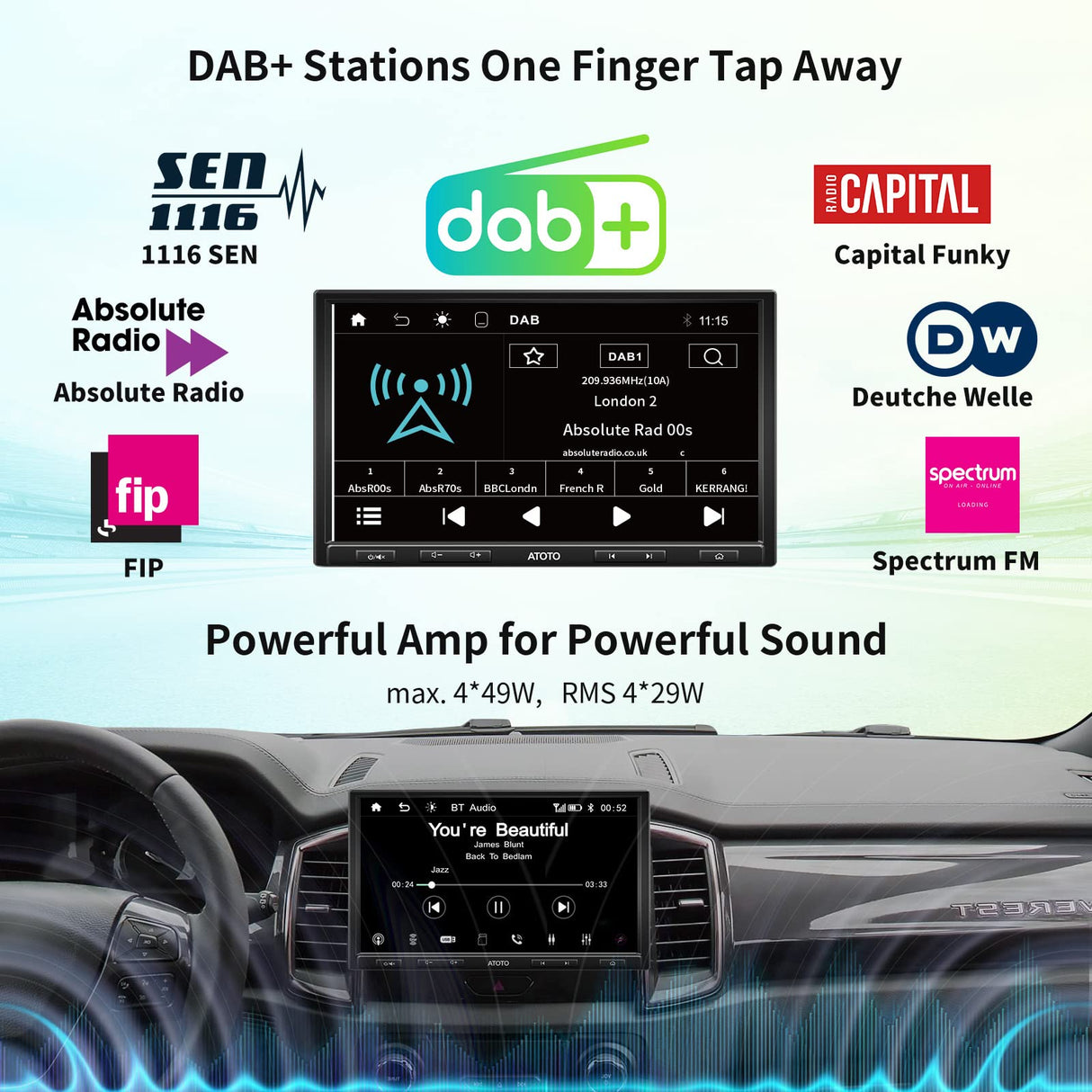

• Built-in DAB+ module: with the included antenna, you can enjoy your favorite DAB+ stations while driving!
• Supports WIRELESS & wired CarPlay and WIRELESS & wired Android Auto: (compatibility information is specified in the corresponding sections below) (IMPORTANT: For wired Android Auto/CarPlay connection, users should use the factory/original USB cable that came with the phone, non-manufacturer-made USB cables may lead to connection issues like a black screen, or an unstable connection.)
• Full HD 10.1" 1280*720 QLED display screen with a 178° full-viewing angle (brightness 600cd/m2); 5-Touch Capacitive Touchscreen
• Built-in pre-amplifier: max. 4*49W with RMS 4*29W (Vcc=14.4v, THD=10%), drives 4-8 ohm speakers; 10-band EQ with 7 presets
• GPS/Navigation: F7G110XED comes with a specific hardware solution to integrate iOS CarPlay or Android Auto into its system so that you can run iOS Maps or Google Maps/Waze on the big HD screen, as long as they are available on your phone

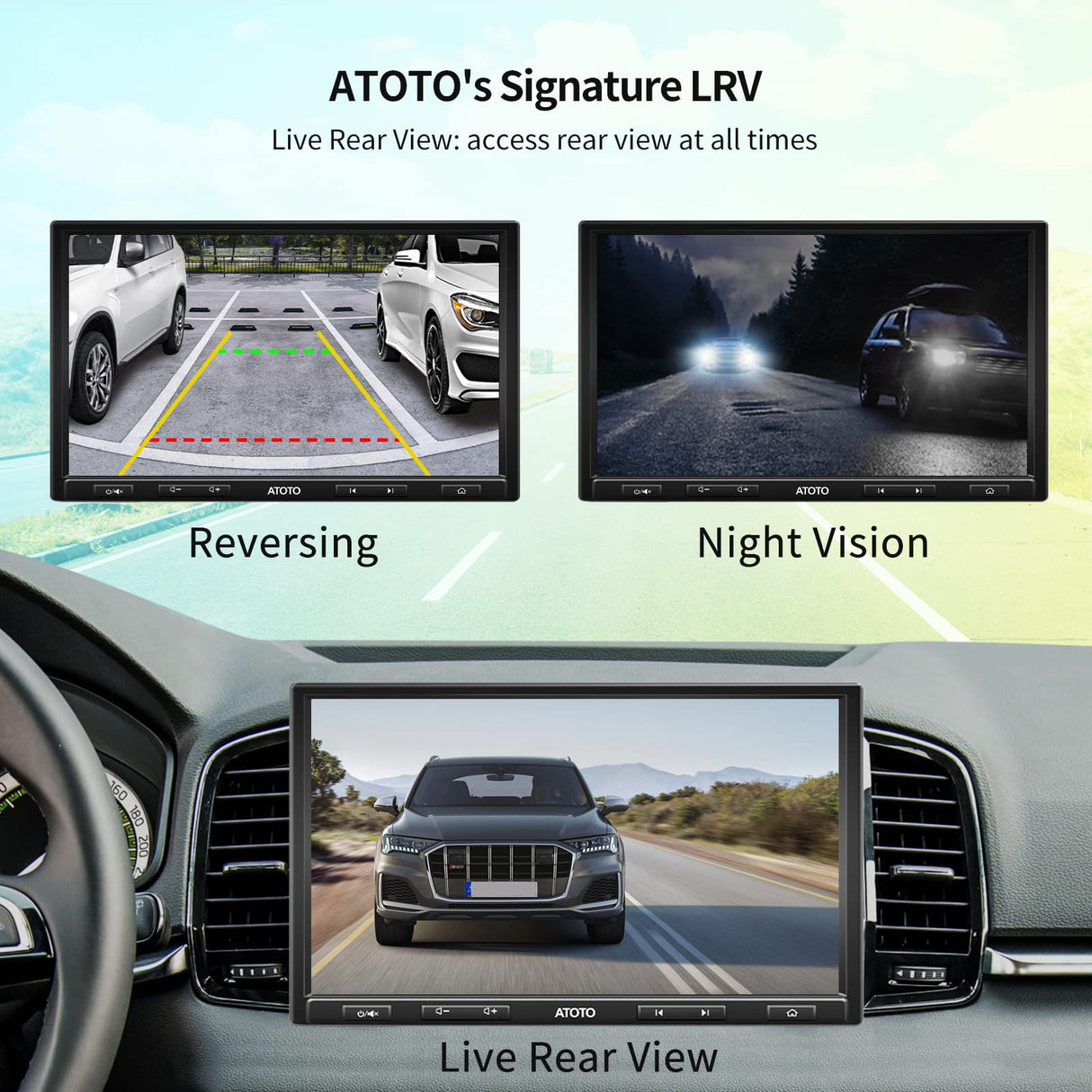

• HD 720P rearview video display with Live Rear-View (LRV) feature (ATOTO AC-HD02LR rearview camera is required, sold separately)
• Fast charging: powered by inner PMS firmware, F7 XE can deliver power to smartphones faster (max. 1.5 A) than other head unit brands (300mA - 500mA) while running wired CarPlay/Android Auto; data transmission & phone charging can be done simultaneously

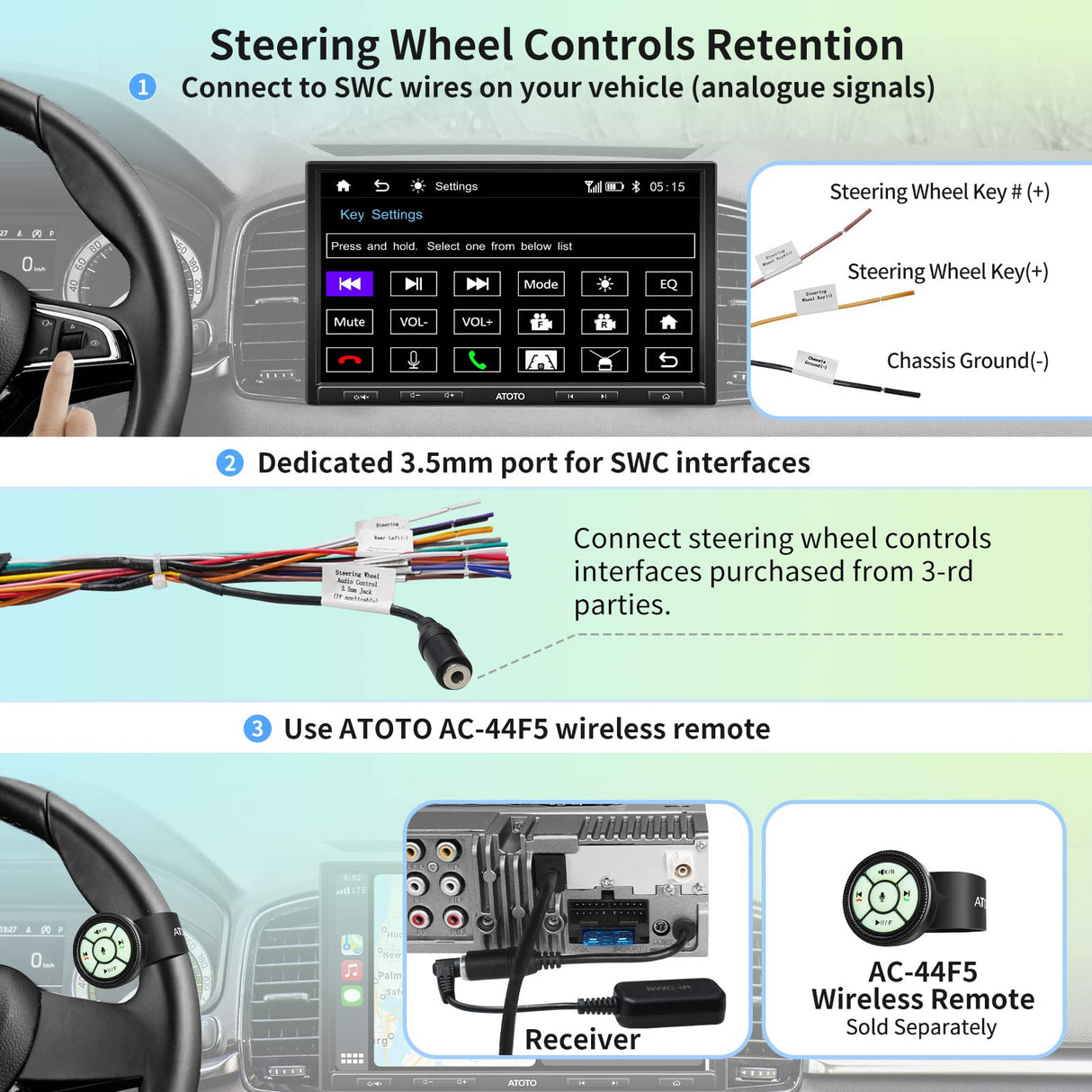

• Steering wheel controls compatible (a 3-rd party interface may be needed): safer driving when you can answer calls/hang up, play/pause, switch tracks, adjust the volume, etc. on the head unit, or with ATOTO AC-44F5 wireless remote;
• Radio tuner: Built-in FM/AM Radio Tuner with RDS
• 6 physical buttons with 8 functions in total enable you to perform simple tasks such as turning down the volume during driving with ease

Inputs, Outputs & Slots

• 3 video inputs, Reversing Camera Input, AUX Audio/Video In & Front Camera Video In, can process 720P HD video signals. For reversing camera input, you can connect a specified ATOTO HD rearview camera to F7 XE for 720P video display (most other head unit brands can only process CVBS 480-600 lines video signals); For F7 XE head units, the specified rearview camera is AC-HD02LR (sold separately); AC-HD03LR is not compatible
• 2 RCA Headrest Video Outputs; 4-CH RCA Audio Out (4v) for connecting to a factory/aftermarket amplifier; Separate Subwoofer Out (3v full range)
• 2 USB interfaces - one for phone connection (CarPlay/Android Auto/AutoLink) and one for external storage devices and media playback. The latter reads up to 2TB SSD. Both SD & SSD must be in FAT32 or NTFS format

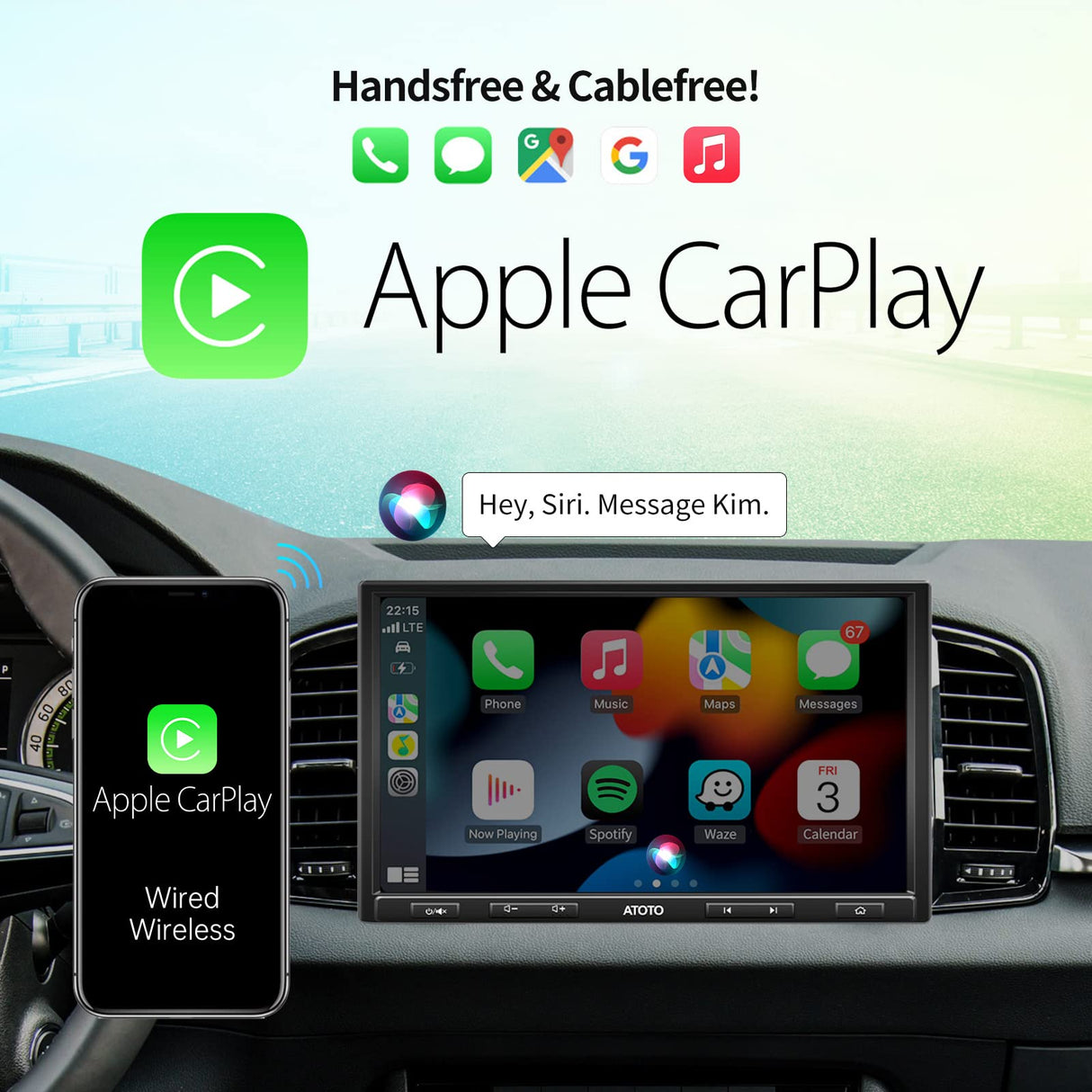

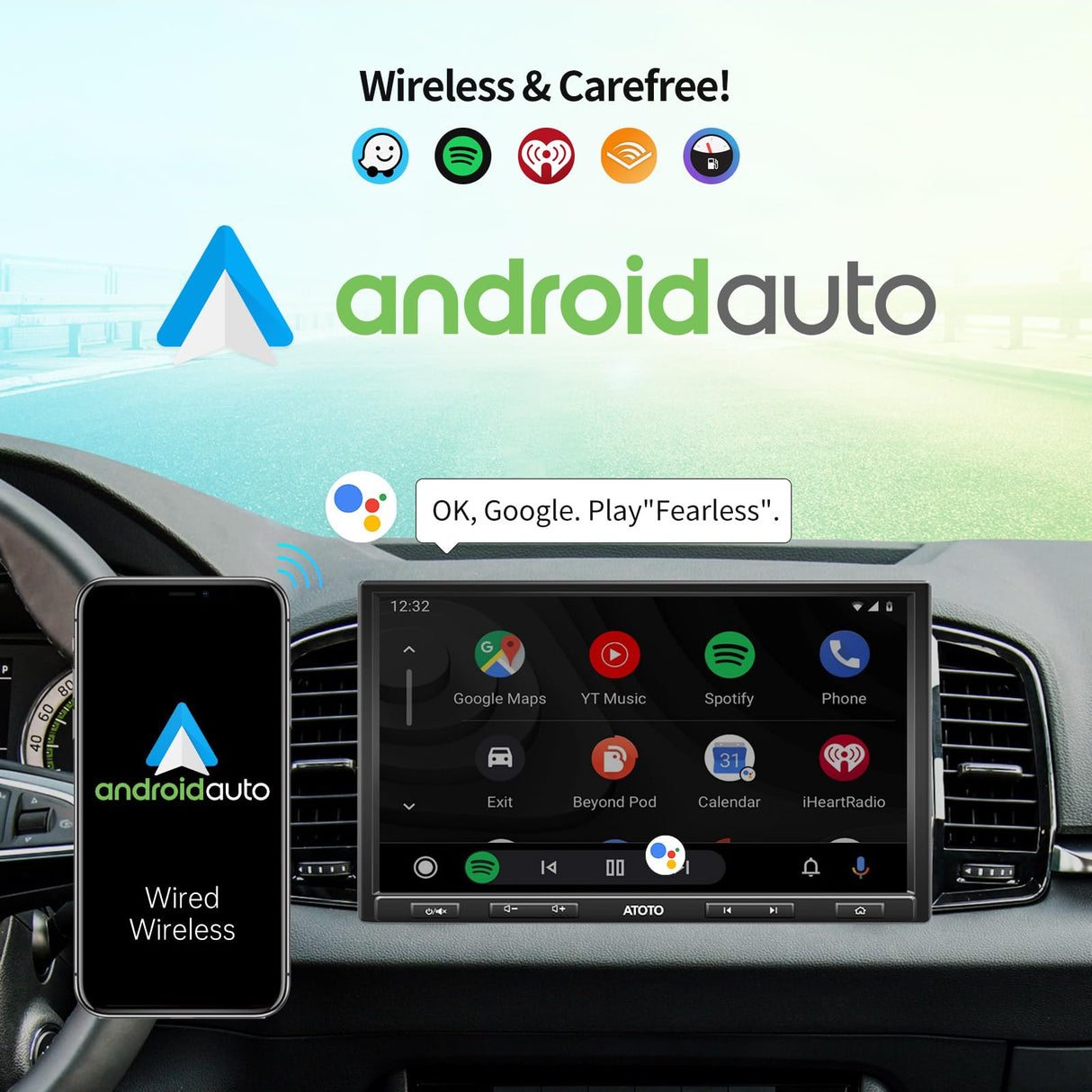

WIRELESS CarPlay and Android Auto

The advantages of CarPlay/Android Auto on F7 XE

1. Wireless is simply better.No more worries about where to put your plugged phone. No more search for a holder which you find to be superfluous anyway. No more entangled cords to distract you. Free at last!

2. Fast and automatic connection For wireless CarPlay/Android Auto, the Bluetooth connection is quick. And after you make the connection for the first time, it will all be automatic. For wired CarPlay/Android Auto, once you plug your iOS/Android phone into the "Phone Link" port on F7 XE, it takes about 3 seconds for CarPlay/Android Auto to be automatically launched. A true plug-n-play function.

3. Stable data transmission Thanks to the premium hardware inside, F7 XE is more than capable of delivering stable and reliable data transmission, both wirelessly (5G Wi-Fi) and wiredly (with USB), which is a strong bolster for you in driving.

4. Great Performance Across All CarPlay/Android Auto Functions CarPlay/Android Auto has revolutionalized the way we drive by enabling us to safely use the iOS/Android phone while driving. Now we can make calls, send/receive messages, listen to music/radio/podcasts/news/audiobook... on the car stereo while driving really conveniently. This, in turn, requires a car stereo that can adequately meet the demands of these functions in terms of audio and visual performance.

On F7 XE, the max. 4*49W amplifier with RMS 4*29W (Vcc=14.4v,THD=10%) makes sure that whether you are making a call, listening to your favorite music or podcasts and so on, you can hear things clearly at a comfortable volume, powerful yet without any distortion. And the included microphone? Well, in our own customer's exact words:"I'm told that the sound is very clear."

Visually, the full HD 10.1" 1280*720 QLED screen (brightness 600cd/m2), other than its fantastic ultra-clear color rendition, offers great visibility even in broad daylight. Also, as a 5-touch capacitive touchscreen, it is easy and smooth to operate on.

5. You phone battery is finally safe. If you get in the car with low battery on your iOS phone/Android phone, and you start driving using CarPlay/Android Auto, on many car stereos with only wired CarPlay/Android Auto, after the trip, the battery is barely charged, if at all. This problem does not exist with F7 XE. The reasons are

a) with wireless CarPlay/Android Auto, you can drive using CarPlay/Android Auto while plugging your iOS phone/Android phone into the USB port dedicated for charging in your vehicle, or putting it on the charging dock station.

b). with wired CarPlay/Android Auto, by design, F7 XE is equipped with advanced PMS to charge your iOS phone/Android phone quickly when you use wired CarPlay/Android Auto (plugged into the dedicated "Phone Link"port).

6. ATOTO F7 supports running CarPlay or Android Auto map navigation while playing FM/AM radio/USB music in the background. Be aware that not all car stereos can do this!

Important:

1. Wired CarPlay is compatible with iPh0ne 5 or later models with iOS 7.1 or higher. Wireless CarPlay is compatible with iPh0ne 5 or later models with iOS 9.0 or higher.

2. Wired Android Auto is compatible with phones running Android 6.0 or higher. For wireless Android Auto, Compatible with Any Phone with Android 11.0, and Compatible with Samsung and Google phones with Android 10.0 (Google Pixel 4, Note 9, Note 20, and S10 have been tested to be compatible with wireless Android Auto on F7 XE). It also Compatible with below Samsung phones with Android 9.0 (S8 and Note 8 have been tested to be compatible with wireless Android Auto on F7 XE).

3. If you choose to use wired CarPlay or wired Android Auto, for fast charging, for instance, factory/original USB cables are required. Non-manufacturer made USB cables may easily cause connection issues, such as black screen after minutes of playback, connection failure or unstable phone connection.

Vehicle Fit

• Important: When installing the display module, please be sure not to leave any screw hole open and tighten the screws, otherwise there may be problems with the display module (stripes, screen freezes, blurry screens, etc.) .
• Single & Double DIN mounting: Although the chassis of F7G110XED is single DIN, it is also meant to be mounted into a double DIN opening with the DIN pocket included in the package.

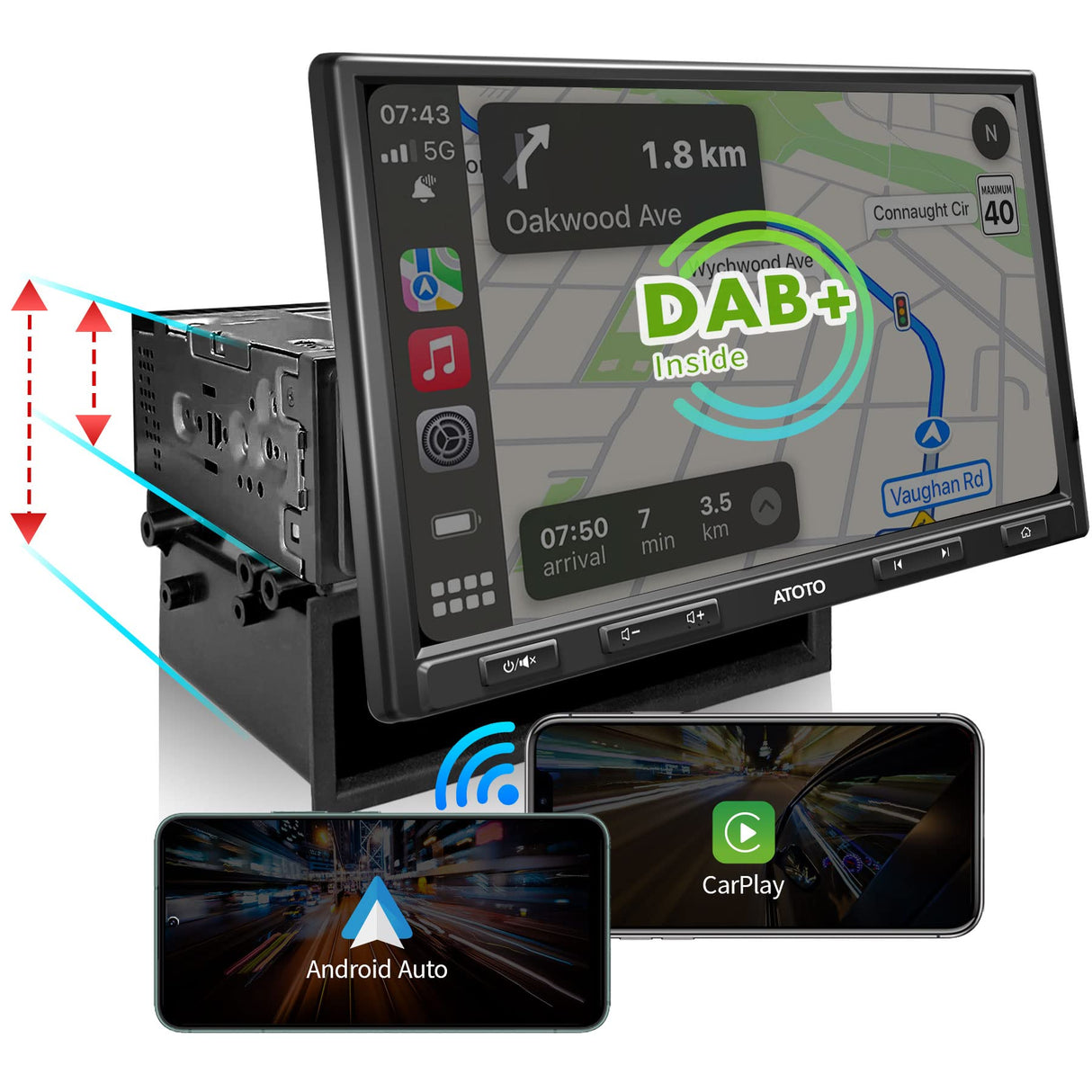

• On F7G110XED, the 10.1-in display screen, measuring 252 mm*155 mm, is attached to the front faceplate of the chassis with a joint. Thus, the display screen stands out from the chassis and allows users to adjust the height and the viewing angle (up or down). Hence the term "floating". (Note: In certain vehicles, the edges of the floating large screen may block the air vent, the emergency switch button, or other buttons, resulting in inconvenience. Make sure that you won't have such problems, or that you are fine with them.)
• As this is a universally fit car stereo, extra accessories may be required to finish installation in a specific vehicle (not provided in the package). It is the buyer's responsibility to prepare them (if applicable). They may include (but are not limited to) a dash frame kit, a wiring harness, a radio antenna adapter, a CANBUS data interface, etc.

Notice: Optional parts for working with ATOTO F7 are sold separately: 1. ATOTO AC-44F5 Steering wheel control IR Remote; 2. ATOTO AC-HD02LR Live Rearview Camera (F7 is NOT compatible with AC-HD03LR); All ATOTO optional accessories/parts can be found here: amazon.co.uk/atoto.
